Home > Products > Butterfly valve > Stailess Steel Lug butterfly valve

Butterfly valve

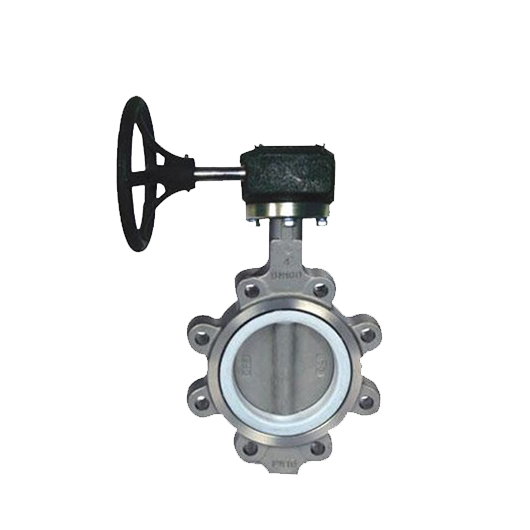

Stailess Steel Lug butterfly valve

Size: DN50–DN250
Body:SS304,SS316,SS316L,SS304L
Disc:SS304,SS316,Al-bronze,C958
Seat:EPDM,NBR,PTFE,VITON
Pressure:PN10,PN16,150LB
Applications:Water,Power,Fire protection,Sewage
Working Temp:-20°C–80°C

Specification

Size

DN50--DN250

Body

SS304,SS316,SS316L,SS304L

Disc

SS304,SS316,Al-bronze,C958

Seat

EPDM,NBR,PTFE,VITON

Pressure

PN10,PN16,150LB

Working Temp

-20°C--80°C

Features

1、The Lug Butterfly Valve body have SS304,SS316,SS304l,SS316L option.There are EPDM,NBR,PTFE for choose.
2、It can also choose pneumatic actuator,electric actuator,handle for choose.
3、The Lug butterfly valve is easy to install and disassemble.It is widely used in petroleum,chemical,environmental protection.
4、If you haven’t found the information your want ,Please kindly send to email.

Downloads

PN10/16 Lug type Butterfly Valve
