Home > Products > Butterfly valve > Full PTFE Butterfly Valve

Butterfly valve

Full PTFE Butterfly Valve

Size: DN50–DN350
Body:Ductile Iron/ASTM A216 WCB/Stainless Steel
Disc:ASTM A216 WCB/CF8/CF8M
Seat:PTFE
Pressure:PN10/PN16/150LB
Applications:Acid or Base liquids,corrosive media
Working Temp:-20°C–130°C

Specification

Size

DN50--DN350

Body

Ductile Iron/ASTM A216 WCB/Stainless Steel

Disc

ASTM A216 WCB/CF8/CF8M

Seat

PTFE

Pressure

PN10/PN16/150LB

Working Temp

-20°C--130°C

Features

1、Full PTFE butterfly valve is for corrosive fluids, The valve use a PTFE lined plate with spherical sealing surface.

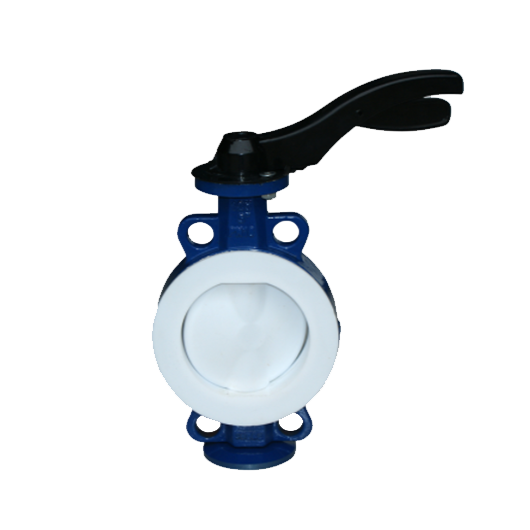

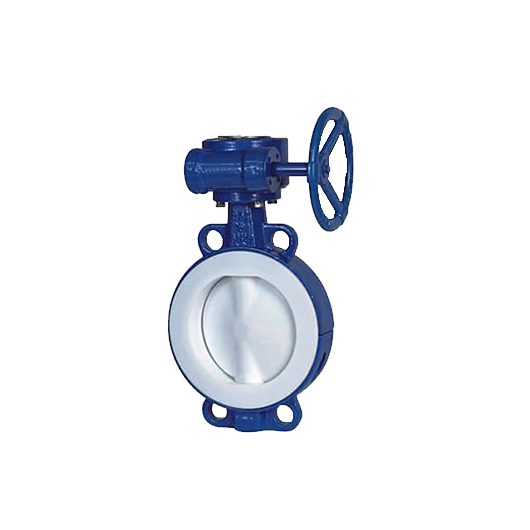

2、The operate have handle,gearbox,electric actuator.
3、It is easy to operate,tightly sealed,long life.It is widely used for sulfuric acid,chlorine and strong corrosive medium.

If you haven’t found the information your want Please kindly send to .

[email protected]
